WMMS-12EW-V2B(59)4 (21 SEER)

PDFPrint

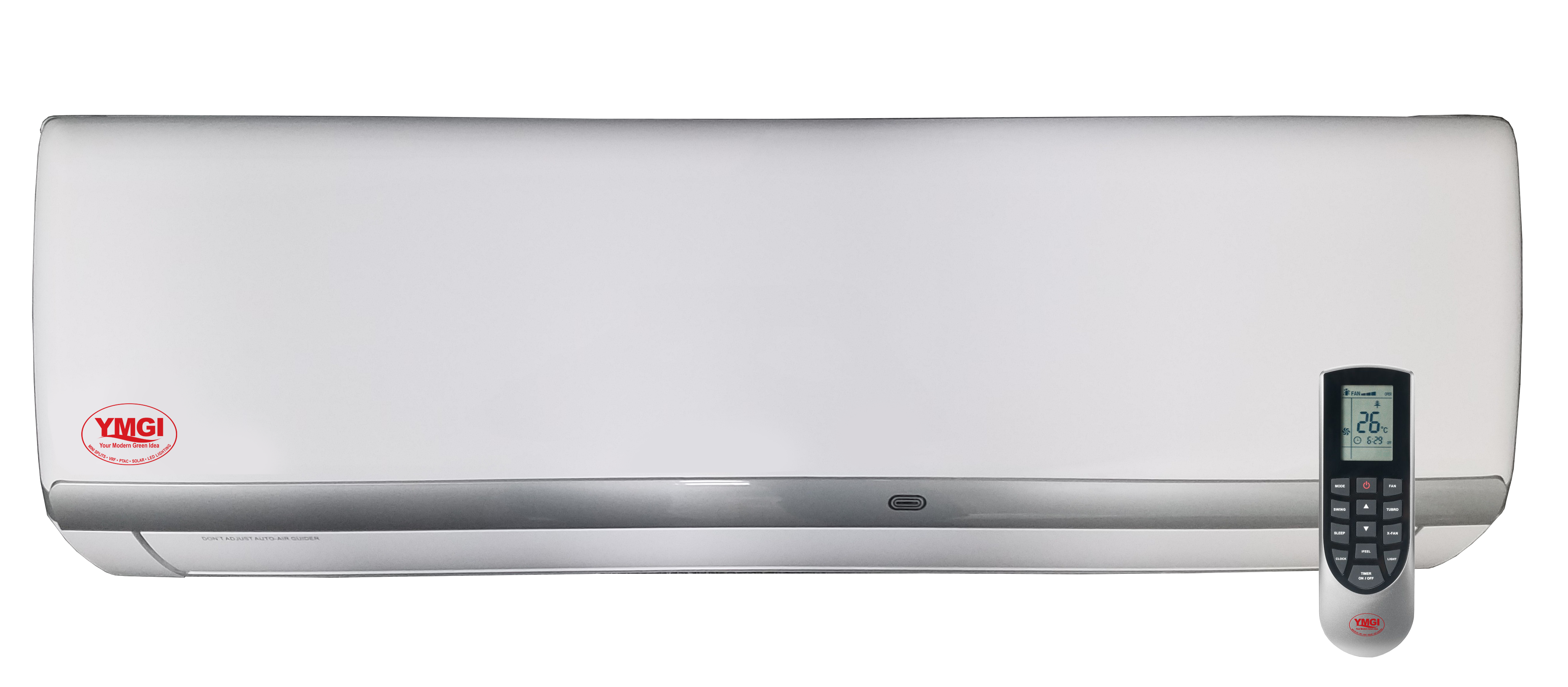

(59)4 DC Inverter Multiple Zone-Indoor Units-Wall Mount EW, 12K Btu/h, 208-230/1/60
Line set not included.
Compatible with (59)2 and (59)4 Outdoor Units
Description



(59)4 DC Inverter Multiple Zone-Indoor Units-Wall Mount EW, 12K Btu/h, 208-230/1/60

  Unit/Conditions WMMS-12EW-V2B(59)4
Power Supply Voltage/Ph/Hz 208-230/1/60
Allowed Voltage Range 187-253
Cooling Capacity (Btu/h) High/Med/Low 13000/12000/3100
Heating Capacity (Btu/h) Max./Stand./Min. 12000/11000/1900
ID 70/60 °F, OD 47/43 °F 13000
ID 70/60 °F, OD 17/15 °F 11600
ID 70/60 °F, OD 17/5 °F 9100
SEER Btu/h.W 22
HSPF Btu/h.W 8.9-8.0
Duhumidifying Capacity Pints/Hr. 2.96
Air Flow (CFM) Low/High 171/400
Air-throw (Ft.) Horizontal Installation 35-30 Upon Mounting Height/Speed/Temp.
External Static Pressure Water In. 0
Sound Level Pressure dB(A) (L/H) 28/45
Fan Motor Model MP24BA
Shaft Single
Speed (RMP, H/M/L) 1400/1050/800
Output (W) 20
RLA (AMP) 0.1
Capacitor (uF) /
Fan Wheel Type-Piece Cross Flow-1
Diameter x Width (In.) Ø3.6 x25.4
Swing/Step Motor Model MP24BA
Piece 1
Output (W) 1.5
Input Power of Ele. Heater Type-W NA
Electrical Protection Fuse PCB/Transformer T3.15A 250V/0.2A
Evaporator Coil Type Aluminum Fin/Inner Grooved Copper Tube
Color Blue
Copper Line Connections Sealed by Dry Nitrogen Yes
Flare/Nut-Liquid + Gas 1/4” + 1/2”
Drain
Hose Connection
OD (In.) Ø 0.67
Condensate Pump Installed-Lift (In.) NA
Filter Type-Feature Washable Particulate
Qty. 2
Clean Coil Surface Anti-Mildew Function Yes
Pre-heating Function   Yes
Remember Presets Power is Lost/Resumed Yes
Auto-Restart Function If Power is Resumed Yes
Unit Dimensions Net WxHxD (In.) 33.4 x 11.4 x 8.2
Package WxHxD (In.) 36.1 x 14.3 x 10.9
Unit Weight Net (LBs) 22.0
Packaged (LBs) 26.5
